Composition and Microstructure of Sintered NdFeB Magnet

Sintered neodymium iron boron (NdFeB) magnet or neodymium (Nd) magnet, as its name implies, contains essential rare earth Nd element. Nd atoms, coupling with ferromagnetic element iron (Fe) atoms, help the magnet obtain high remanence (Br) and maximum energy product ((BH)max), which makes it extraordinary compared with other permanent magnets. In commercial sintered NdFeB magnet, Nd element is usually partially substituted by other rare earth elements including praseodymium (Pr), dysprosium (Dy) and terbium (Tb), etc. Because Nd and Pr elements usually coexist in ore and these two elements have similar physical and chemical properties, so it is more economic to produce PrNd alloy instead of pure Nd metal from ore and to use PrNd alloy as the raw material of magnet. As the Nd/Pr ratio in ore is around 4:1, so it is also around 4:1 in most commercial magnets. Dy and/or Tb element substitution for Nd element can remarkably increase the intrinsic coercivity (Hcj or Hci) due to their higher magnetocrystalline anisotropy field (HA). The total content of Dy and Tb elements in the magnet is usually less than 10 wt% because of high cost and Br loss. In general, the total rare earth element content is around 30 wt% in the magnet, and its material cost accounts for around 70% of the magnet or even higher depending on specific rare earth element and its content. Besides of Nd and Fe elements, boron (B) element is also essential for sintered NdFeB magnet. Although B element content is only around 1 wt% in the magnet, it is necessary for the intermetallic phase stability so as to keep its magnetic properties stable. In addition, Fe element is substituted by some cobalt (Co) element to enhance thermal stability and corrosion resistance, and a small amount of aluminum (Al) and copper (Cu) elements are added to improve microstructure homogeneity so as to increase Hcj and (BH)max.

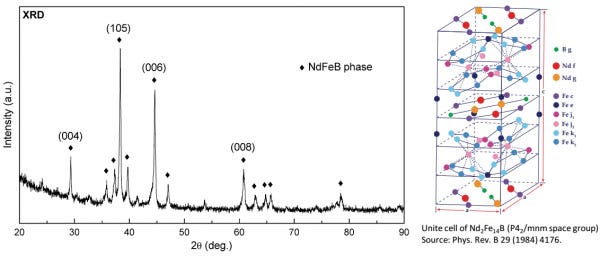

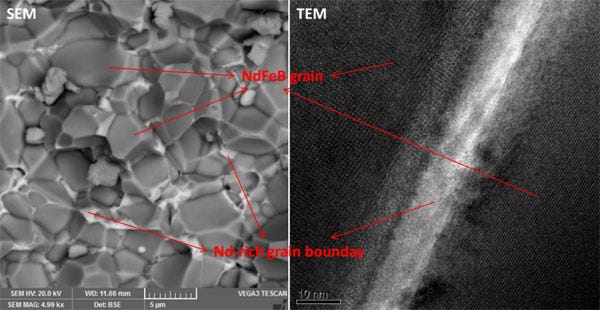

Seen from the X-ray diffraction (XRD) spectrum of sintered NdFeB magnet, it can be determined that the Nd2Fe14B tetragonal phase is the main phase in the magnet. In view of the scanning electron microscope (SEM) image, the darker gray areas are Nd2Fe14B grains, the average grain size is around 6–8 μm. The lighter gray areas surrounding the grains are Ni-rich grain boundaries, the average grain boundary thickness between adjacent grains is around 10 nm as shown in the transmission electron microscope (TEM) image. In fact, the sintering process of sintered NdFeB magnet is a liquid phase sintering process. The grain boundary phase, with lower melting point than that of grain phase, will melt into liquid phase during sintering process and subsequent annealing process, it is vital to densify the magnet and improve its microstructure homogeneity so as to enhance its magnetic properties.
